Enhance PC Board Design and Performance with Surface Mount Standoffs
PEM Fastening Solutions for PC Boards

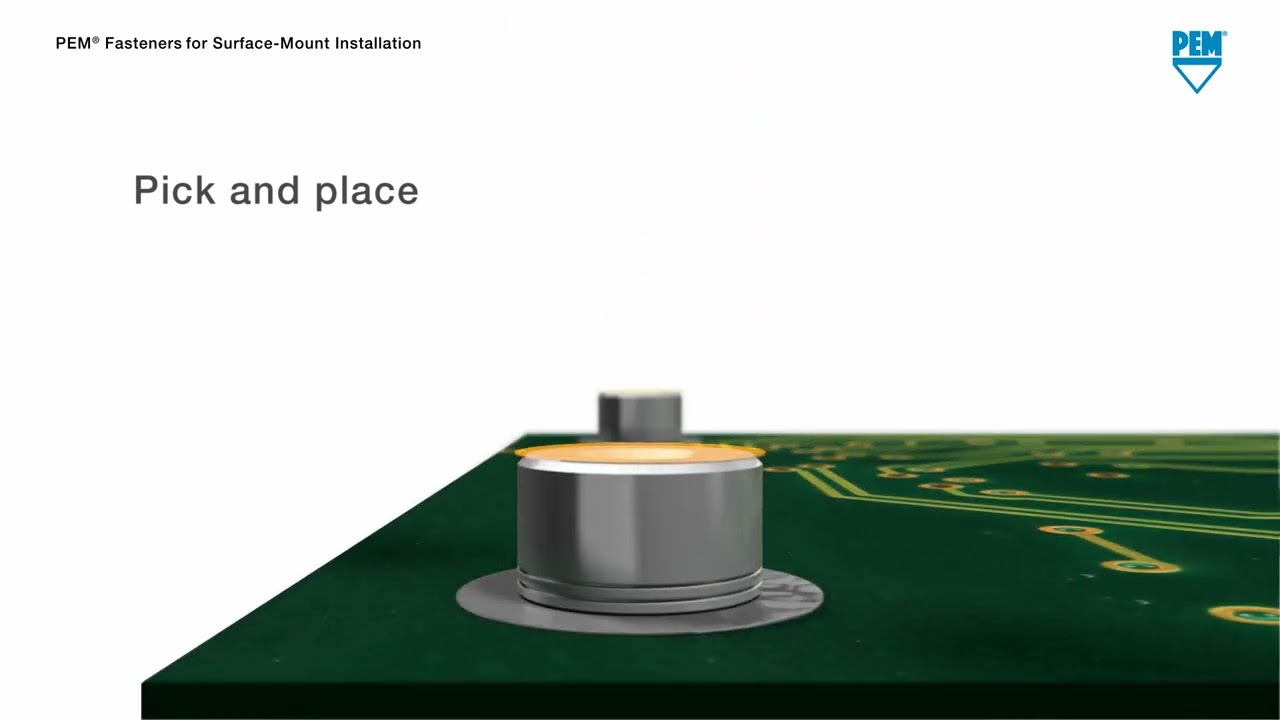

SMT standoffs mount on PC boards in the same manner and at the same time as other surface mount components prior to the automated reflow solder process. This alleviates concerns about potential damage to PC boards due to improper secondary installation operations.
Fasteners are provided on tape and reel compatible with existing SMT automated installation equipment.
Discover the Features + Benefits | SMTSO Standoffs
Key Features
Benefits
Applications + Industries
Key Features
- Hex-shaped barrel provides a larger area for soldering, which helps in creating more robust and reliable solder joints.
- Facilitates easy and efficient handling and assembly, compatible with automated installation equipment used in surface mount technology.
- Can be used with sheets as thin as 0.5 mm, allowing for flexibility in design and application.
Benefits
- Cost saving: Through-hole solutions with simpler features and streamlined installation – removes the need for displacement and interference features like knurls or burrs.
- Enhanced durability: Its robust design and larger solder area makes it it more resistant to physical stresses and temperature variations.
Applications + Industries
Primary Applications:
PCB Mounting, PC Boards, Electronic Enclosures
Key Industries:
Datacom, Telecommunication, Electronics
More PEM Solutions

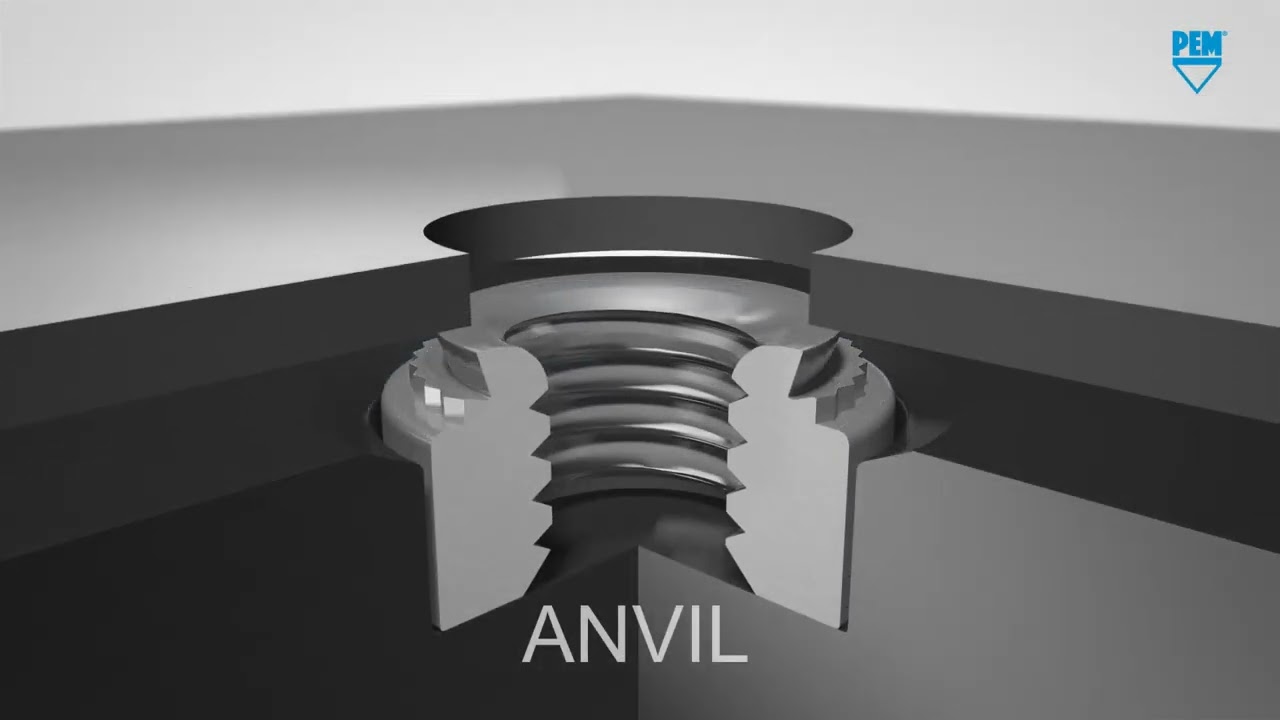

S Nut
- Provide load-bearing threads in thin sheets
with high pushout and torque-out resistance. - Recommended for use in
steel or aluminum sheets HRB 80 / HB 150
or less.

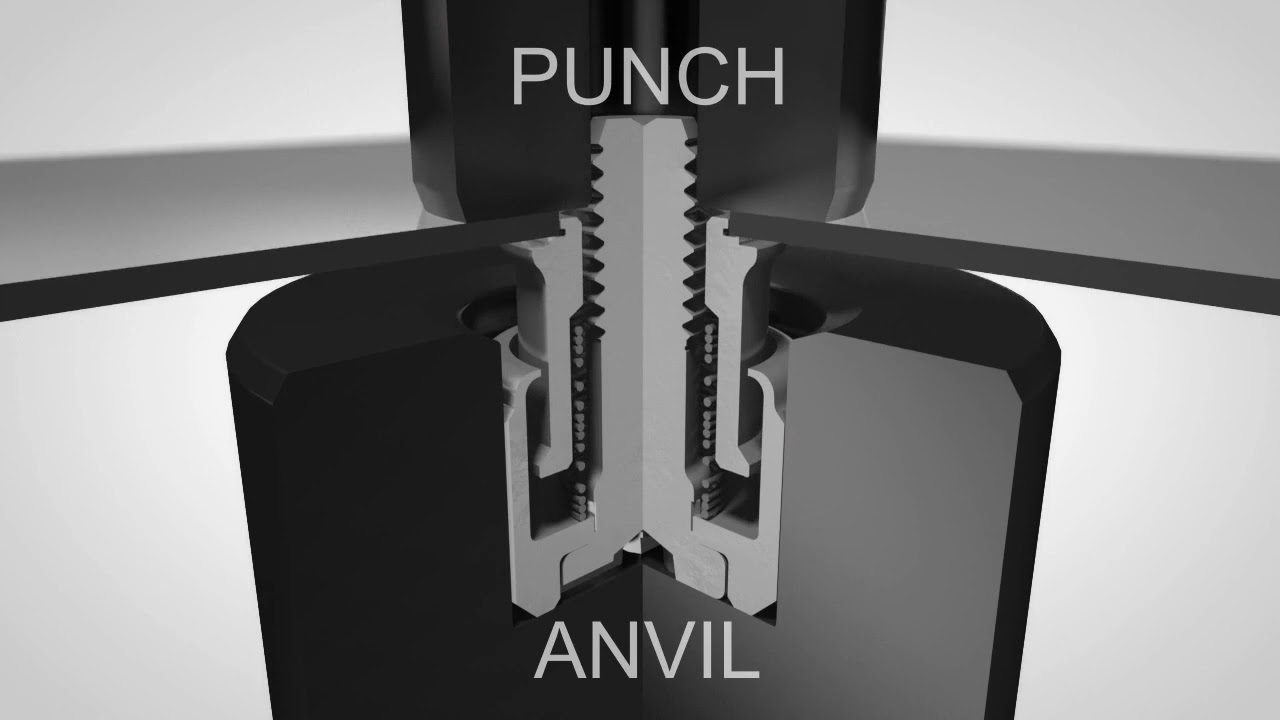

PF11M Panel Fastener
- Available in three installation types; self-clinching, flare-mounted
and floating. - Shoulder on retainer to provide positive stop during installation.

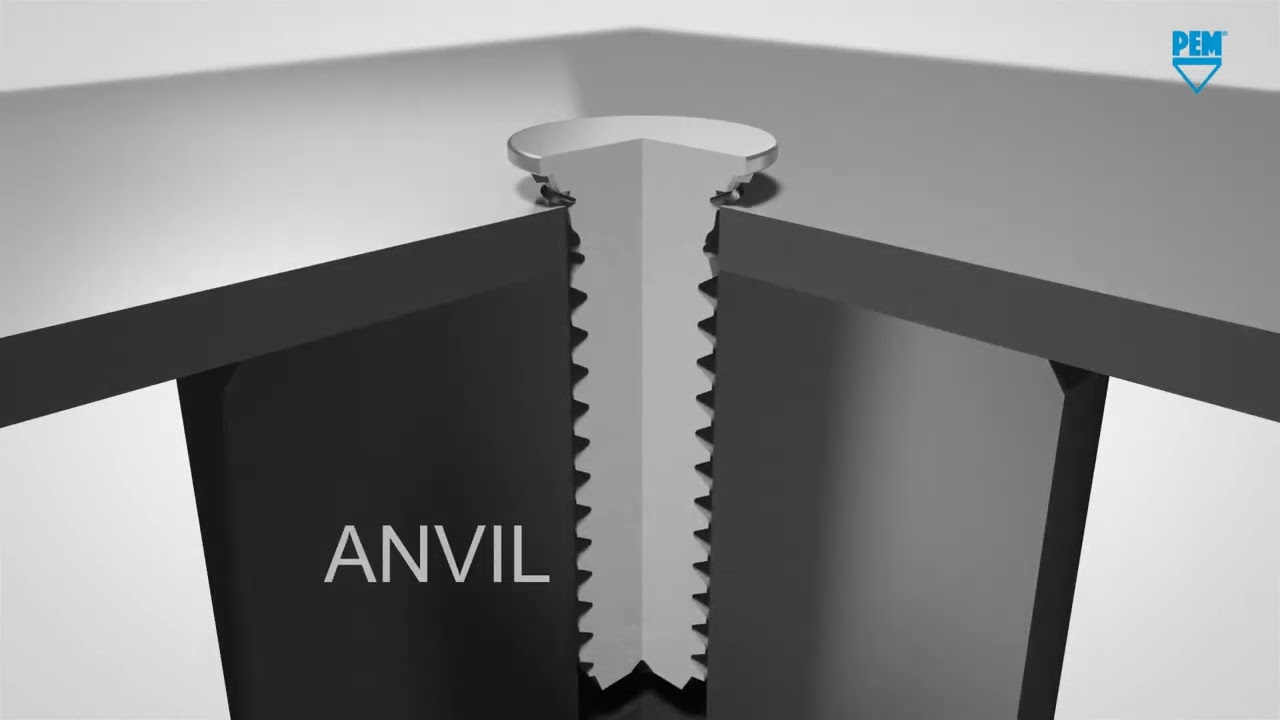

FH Stud
- Flush-head for sheet thickness of .040″ / 1mm and greater.
- Recommended for use in steel or aluminum sheets HRB 80 / HB 150 or less.
